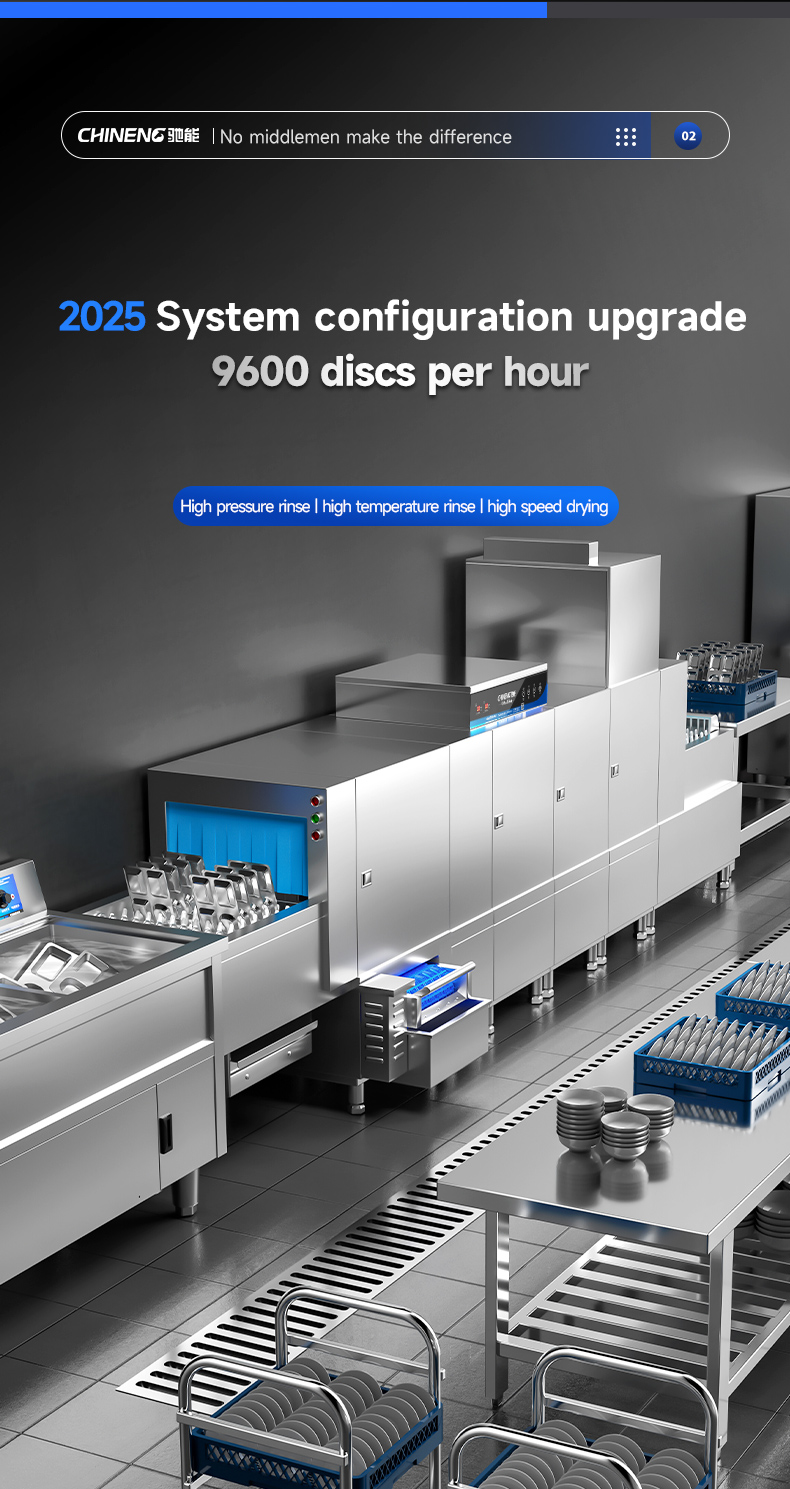

Long line dishwasher
Long line dishwasher

Long line dishwasher

CHINENG will optimize product specifications from time to time according to the market response, the parameters on the page may not be updated in time, so the specific parameters are subject to the real product, while the commercial kitchen equipment a wide variety of products did not appear on the page, if you have equipment needs or customized services, please add the following customer service wechat detailed consultation, we thank you for coming!
TikTok: Chineng Cooking utensil YouTube: 驰能商用厨具 WhatsApp: 8613528627820 Wechat: 13528627820
Details Product parameters After-sales service



Special price
Flat wash one main wash one rinse (with dispenser)
CN-PFS-160D-S
Total power:27.8kw
Water consumption:280l/ hour
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:1600*850*1420mm
Body module:1 main washing tank +1 spray tank
Cleaning capacity:900~1200 discs/hour
Power requirements:380v/50hz/5p (three-phase five-wire)
Bowl size:Width 600* height 200mm


Flagship model
Flat wash one main wash one rinse
CN-8001-PFS-Z1P1-A175
Total power:48kw
Power requirements:380v (three-phase five wire)
Cleaning capacity:950~1550 discs /18 "discs/hour
Main wash temperature:50~60℃
Product size:1750*900*1450mm
Main washing capacity:65l
Water consumption:360l/ hour
Transfer speed:1.4-3 m/min
Rinse temperature:80~90℃


Flat type two main wash one rinse
CN-8001-PFS-Z2P1-A26
Total power:60kw
Power requirements:380v (three-phase five wire)
Cleaning capacity:1200~2500 disks /18 "disks/hour
Main wash temperature:50~60℃
Product size:2600*900*1450mm
Main washing capacity:130l
Water consumption:360l/ hour
Transfer speed:1.4-3 m/min
Rinse temperature:80~90℃


Flat type one main wash, two rinsing, one drying
CN-8001-PFS-Z1P2H1-A39
Total power:63kw
Power requirements:380v (three-phase five wire)
Cleaning capacity:900~1500 discs /18 inch discs/hour
Main wash temperature:50~60℃
Product size:3900*900*1900mm
Main washing capacity:65l
Water consumption:360l/ hour
Transfer speed:1.4-3 m/min
Rinse temperature:80~90℃


Flat type one main wash, two rinses, two dries
CN-8001-PFS-Z1P2H2-A50
Total power:78kw
Power requirements:380v (three-phase five wire)
Cleaning capacity:1200~2500 disks /18 "disks/hour
Main wash temperature:50~60℃
Product size:5000*900*1900mm
Main washing capacity:130l
Water consumption:360l/ hour
Transfer speed:1.4-3 m/min
Rinse temperature:80~90℃


Inclined insert type two main wash two rinsing
CN-8022-XCS-Z2P2-B41
Total power:51.4kw
Power requirements:380v/50hx/3p
Cleaning capacity:4000~5500 discs/hour
Water consumption:360l/ hour
Product size:4100*850*1550mm
Inlet water temperature:10~50℃
Washing temperature:55~65℃
Rinse temperature:80~90℃
Entrance size:620*420mm


Inclined insert one main washing, two rinsing, one drying
CN-8022-XCS-Z1P2H1-B43
Total power:56.7kw
Power requirements:380v/50hx/3p
Cleaning capacity:2500~3000 discs/hour
Water consumption:360l/ hour
Product size:4300*850*1900mm
Inlet water temperature:10~50℃
Washing temperature:55~65℃
Rinse temperature:80~90℃
Entrance size:620*420mm


Inclined insert type two main washing, two rinsing and drying
CN-8022-XCS-Z2P2H1-B52
Total power:64.2kw
Power requirements:380v/50hx/3p
Cleaning capacity:4000~5500 discs/hour
Water consumption:360l/ hour
Product size:5200*850*1900mm
Inlet water temperature:10~50℃
Washing temperature:55~65℃
Rinse temperature:80~90℃
Entrance size:620*420mm


Inclined insert type two main washing, two rinsing, two drying
CN-8022-XCS-Z2P2H2-B62
Total power:69.1kw
Power requirements:380v/50hx/3p
Cleaning capacity:4000~5500 discs/hour
Water consumption:360l/ hour
Product size:6200*850*1900mm
Inlet water temperature:10~50℃
Washing temperature:55~65℃
Rinse temperature:80~90℃
Entrance size:620*420mm


supreme
Flat wash one main wash one rinse
CN-8021-PFS-Z1P1-B18
Total power:35.1kw
Total current:65a
Cleaning capacity:6 inch plate 1200/ snack plate 600
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:1800*880*1450mm
Body module:1 main washing tank +1 spray tank
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:2.2 m/min
Washing size:Width 650* Height 190mm


Flat type two main wash one rinse
CN-8021-PFS-Z2P1-B275
Total power:43.1kw
Cleaning capacity:6-inch plate 2550/ snack plate 1250
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:2750*880*1450mm
Body module:2 main washing tank +1 spray tank
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Washing size:Width 560* height 190mm


Flat type two main wash two rinsing
CN-8021-PFS-Z2P2-B325
Total power:43.35kw
Total current:81a
Cleaning capacity:6 inch plate 3600/ snack plate 1800
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:3250*880*1450mm
Body module:2 main washing tank +2 spray tank
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:2.2 m/min
Washing size:Width 560* height 190mm


Flat type one main wash, one rinse, one dry
CN-8021-PFS-Z1P1H1-B355
Total power:56.7kw
Total current:63a
Cleaning capacity:6 inch plate 2600/ snack plate 1300
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:3550*880*1950mm
Body module:1 main washing tank +1 spray tank +1 drying
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:2.2 m/min
Washing size:Width 560* height 190mm


Flat type two main washing, two rinsing, one drying
CN-8021-PFS-Z2P2H1-B455
Total power:65.15kw
Total current:120a
Cleaning capacity:6 inch plate 4000/ snack plate 2000
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:4550*880*1950mm
Body module:2 main washing tank +2 spray tank +1 drying
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:2.2 m/min
Washing size:Width 560* height 190mm


Flat type two main wash, two rinsing, two drying
CN-8021-PFS-Z2P2H2-B595
Total power:82.15kw
Total current:150a
Cleaning capacity:6 inch plate 6400/ snack plate 3000
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:5950*800*1950mm
Body module:2 Main washing tank +2 spray tank +2 drying
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:2.2 m/min
Washing size:Width 560* height 190mm


Inclined insert one main wash two rinsing
CN-8021-XCS-Z1P2-A3
Total power:44.8kw
Total current:80a
Cleaning capacity:6-inch dish6000/ snack plate 3200
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:3000*900*1600mm
Body module:1 main washing tank +2 spray tank
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:1.5/2 m/min
Washing size:Width 620* height 450mm


Inclined insert type two main wash two rinsing
CN-8021-XCS-Z2P2-A38
Total power:56.45kw
Total current:100a
Cleaning capacity:6 inch plate 6200/ snack plate 3500
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:3800*900*1600mm
Body module:2 main washing tank +2 spray tank
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:1.5/2 m/min
Washing size:Width 620* height 450mm


Inclined insert one main washing, two rinsing, one drying
CN-8021-XCS-Z1P2H1-A45
Total power:54.8kw
Total current:97a
Cleaning capacity:6-inch dish6000/ snack plate 3200
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:4500*900*2050mm
Body module:1 main washing tank +2 spray tank +1 drying
Water consumption:290l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:1.5/2 m/min
Washing size:Width 620* height 450mm


Inclined insert type two main washing, two rinsing and drying
CN-8021-XCS-Z2P2H1-A52
Total power:66.2kw
Total current:118a
Cleaning capacity:6-inch dish6000/ snack plate 3200
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:5200*900*2050mm
Body module:2 main washing tank +2 spray tank +1 drying
Water consumption:300l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:1.5/2 m/min
Washing size:Width 620* height 450mm


Inclined insert type two main washing, two rinsing and drying with slag removal
CN-8021-XCS-Z2P2H1-CZ55
Total power:66.3kw
Total current:118a
Cleaning capacity:6-inch dish6000/ snack plate 3200
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:5500*900*2050mm
Body module:2 main washing tank +2 spray tank +1 drying +1 slag removal
Water consumption:300l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:1.5/2 m/min
Washing size:Width 620* height 450mm


Inclined insert type two main washing, two rinsing, two drying
CN-8021-XCS-Z2P2H2-A59
Total power:75.95kw
Total current:135a
Cleaning capacity:6-inch dish9000/ snack plate 4400
Main wash temperature:55~65℃
Rinse temperature:80~90℃
Product size:5900*900*2050mm
Body module:2 Main washing tank +2 spray tank +2 drying
Water consumption:300l/ hour
Power requirements:n²380vac/50hz/3pa
Transfer speed:1.5/2 m/min
Washing size:Width 620* height 450mm


Project fund

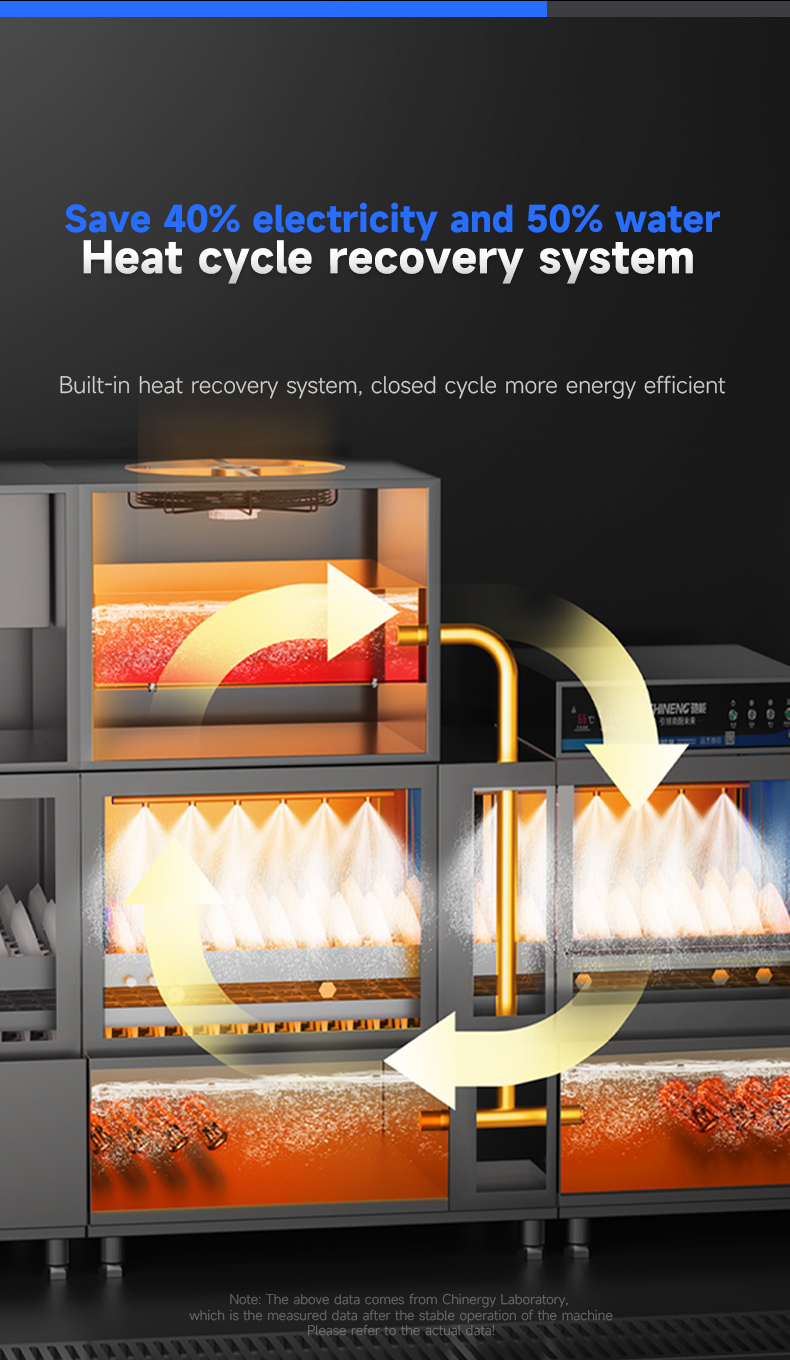

One main wash and two rinses (intelligent heat recovery)
CN-8001-ZNR-Z1P2-C30
Total power:36kw
Total voltage:380v (three-phase five wire)
Cleaning capacity:2000-3500/18 inch disc/hour
Main wash temperature:50~60℃
Product size:3000*900*1650mm
Water consumption:420l/ hour
Transfer speed:2.6 m/min
Rinse temperature:80~90℃


Two main wash two rinse (intelligent heat recovery)
CN-8001-ZNR-Z2P2-C38
Total power:44kw
Total voltage:380v (three-phase five wire)
Cleaning capacity:4000-5500/18 "disc/hour
Main wash temperature:50~60℃
Product size:3800*900*1650mm
Water consumption:420l/ hour
Transfer speed:3.2 m/min
Rinse temperature:80~90℃


One main wash, two rinses and one drying (intelligent heat recovery)
CN-8001-ZNR-Z1P2H1-C45
Total power:51kw
Total voltage:380v (three-phase five wire)
Cleaning capacity:2000-3500/18 inch disc/hour
Main wash temperature:50~60℃
Product size:4500*900*2060mm

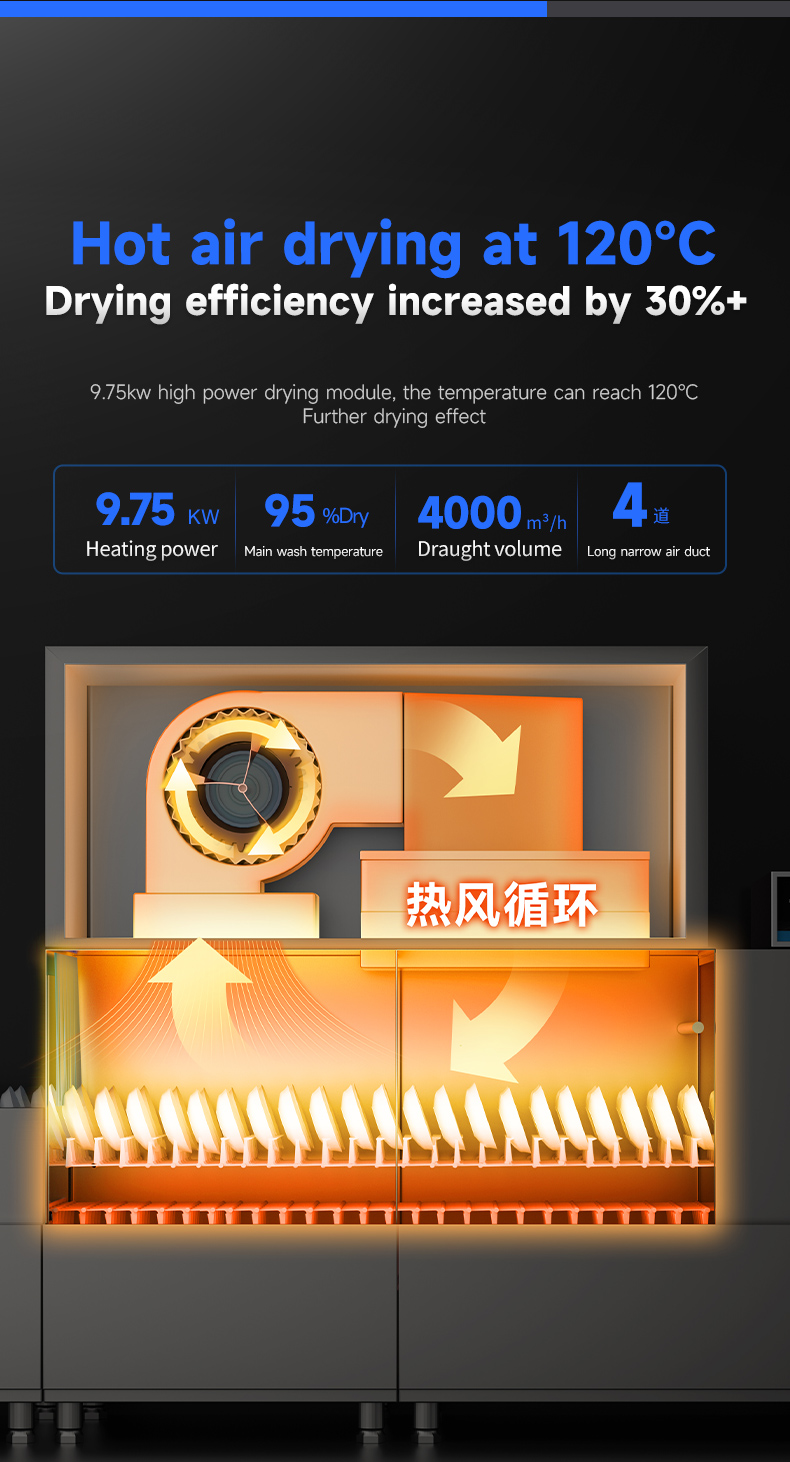

Drying power:15kw
Water consumption:420l/ hour
Transfer speed:1.4-3 m/min
Rinse temperature:80~90℃


Inclined insert two main washing two rinsing one drying (intelligent heat recovery)
CN-8001-ZNR-Z2P2H1-C52
Total power:59kw
Total voltage:380v (three-phase five wire)
Cleaning capacity:4000-5500/18 "disc/hour
Main wash temperature:50~60℃
Product size:5200*900*2060mm
Drying power:15kw
Water consumption:420l/ hour
Transfer speed:2.6-3.5 m/min
Rinse temperature:80~90℃


Inclined insert two main washing two rinsing one drying strip slag removal (intelligent heat recovery)
CN-8001-ZNR-Z2P2H1-C58
Total power:61kw
Total voltage:380v (three-phase five wire)
Cleaning capacity:4000-5500/18 "disc/hour
Main wash temperature:50~60℃
Product size:5800*900（1350）*2060mm
Drying power:30kw
Water consumption:420l/ hour
Transfer speed:2.6-3.5 m/min
Rinse temperature:80~90℃


Inclined insert two main washing two rinsing two drying (intelligent heat recovery)
CN-8001-ZNR-Z2P2H2-C59
Total power:74kw
Total voltage:380v (three-phase five wire)
Cleaning capacity:4000-5500/18 "disc/hour
Main wash temperature:50~60℃
Product size:5900*900*2060mm
Drying power:30kw
Water consumption:420l/ hour
Transfer speed:2.6-3.5 m/min
Rinse temperature:80~90℃
Sales processCustomized process

Sales process

Consultation

Make an appointment for free on-site survey by consulting or filling in the form

Requirements submission

Submit or inform the customer service of your usage environment, scale, usage and other information

Recommended kitchen equipment

According to customer needs, customer service recommends relevant products and models and gives a detailed introduction

The customer places an order

The functional parameters of the equipment shall meet the customer's requirements for placing an order

Factory delivery

According to the customer's order model, the factory carries out production packaging and delivery

Equipment installation

We have a professional installation master to install and test

After-sales service

If there is any problem with the kitchen equipment, there will be professional door-to-door service

Customized process

Consultation

Make an appointment for free on-site survey by consulting or filling in the form

Requirements submission

Submit or inform the customer service of your usage environment, scale, usage and other information

Recommended kitchen equipment

According to customer needs, customer service recommends relevant products and models and gives a detailed introduction

Engineer design

Equipment engineer gives design feedback according to the requirements submitted by the customer

Identify a custom design

The equipment engineer determines the customized design according to the customer's needs for the customer to determine.

Factory production

After the customized design is determined, it is handed over to the factory for production, and there is a certain production cycle according to the difficulty of customization

Factory delivery

After the customized equipment is tested and no problem is found, it will be packed and shipped

Equipment installation

We have a professional installation master to install and test

After-sales service

If there is any problem with the kitchen equipment, there will be professional door-to-door service

Price transparency

Nationwide coverage

Rapid design

Quick quote

Worry-free after sale

Guangdong Jiushang Electronic Technology Co., Ltd. - CHINENG Commercial Kitchen

Mobile: +86-135-2862-7820

Contact: Manager Liu

Address: No. 88, Lot 42, Map 336, An Thanh Street, An Thanh Ward, Binh Gi, Binh Dinh Province, Vietnam

Copyright © Guangdong Jiushang Electronic Technology Co., Ltd. - CHINENG Commercial Kitchen All Rights Reserved.

TikTok YouTube WhatsApp Wechat
TOP
