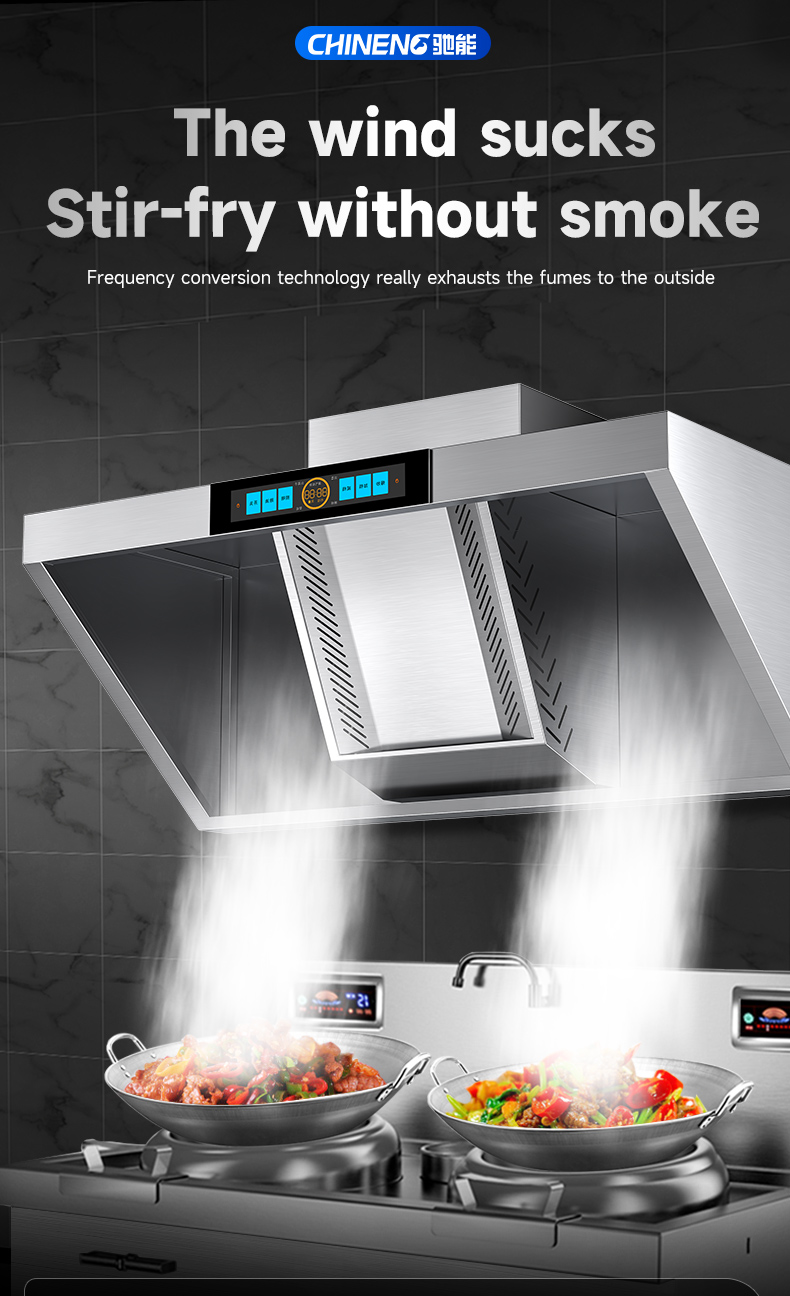

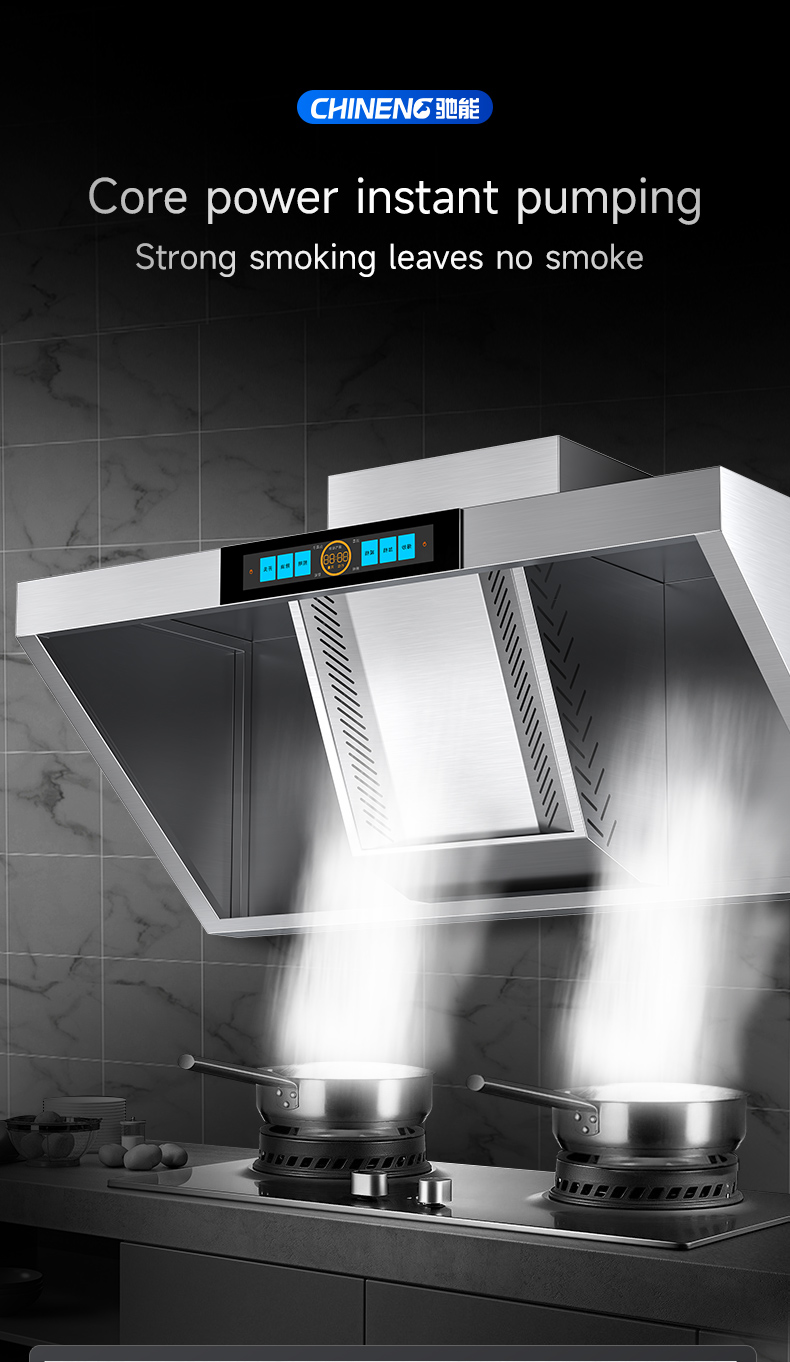

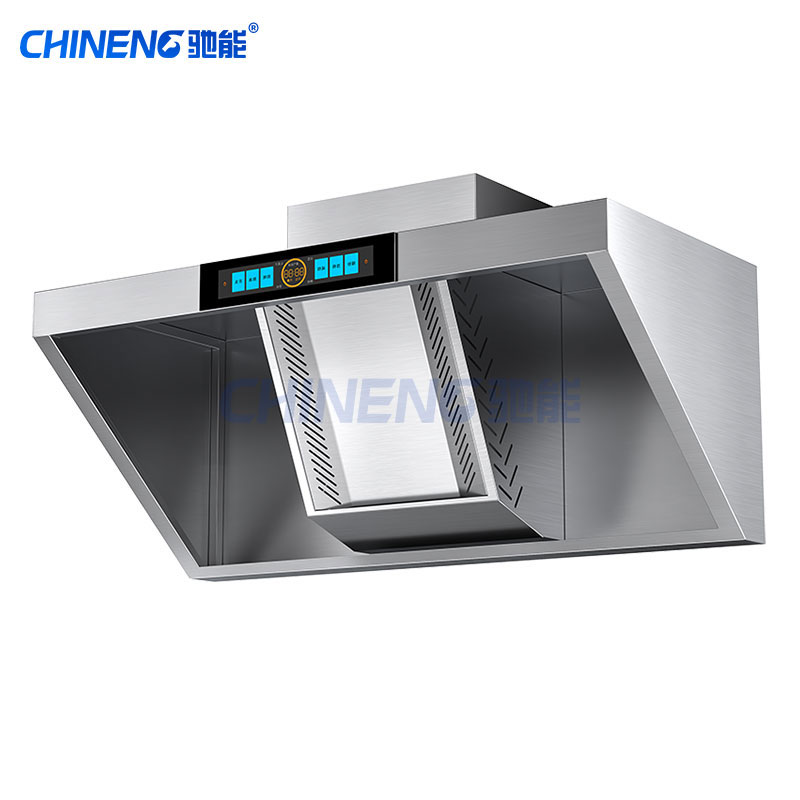

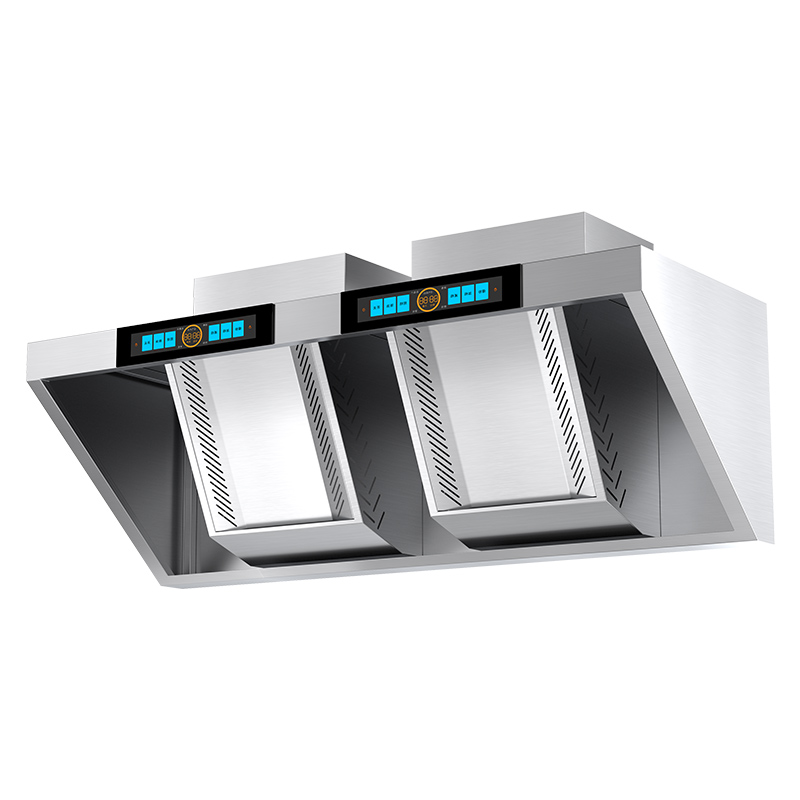

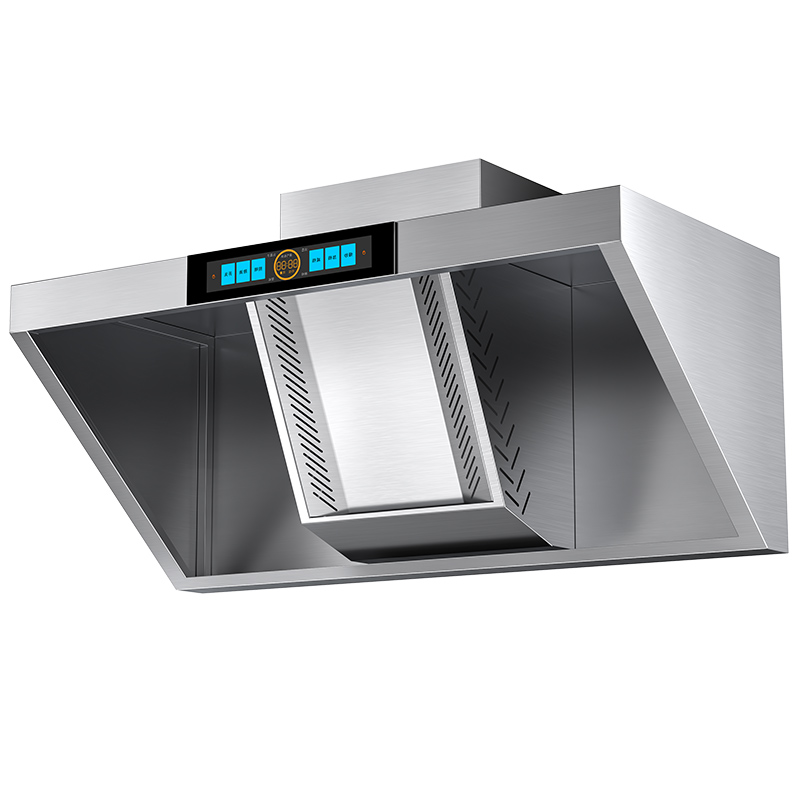

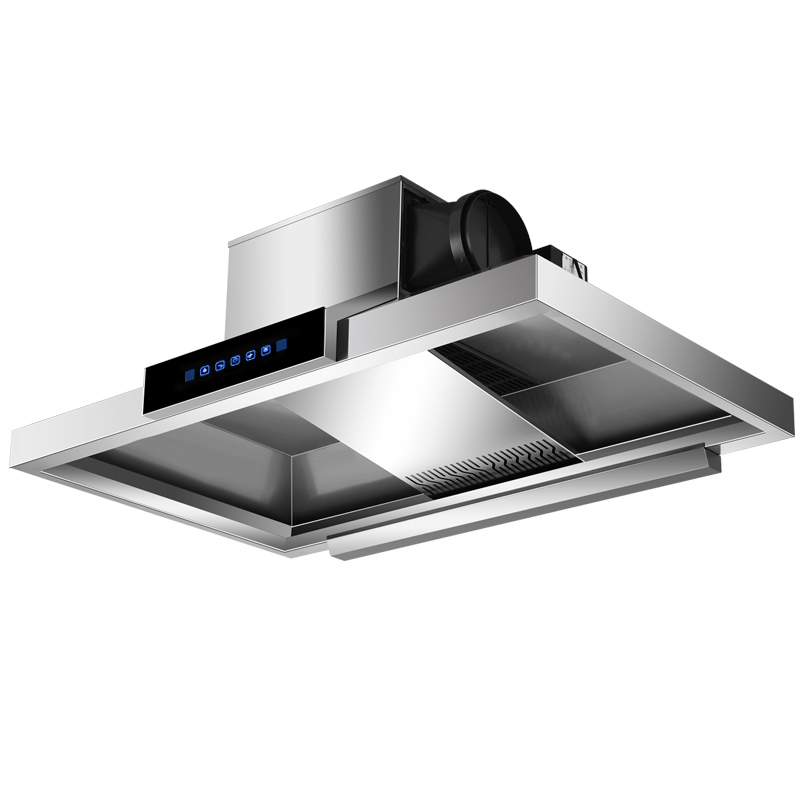

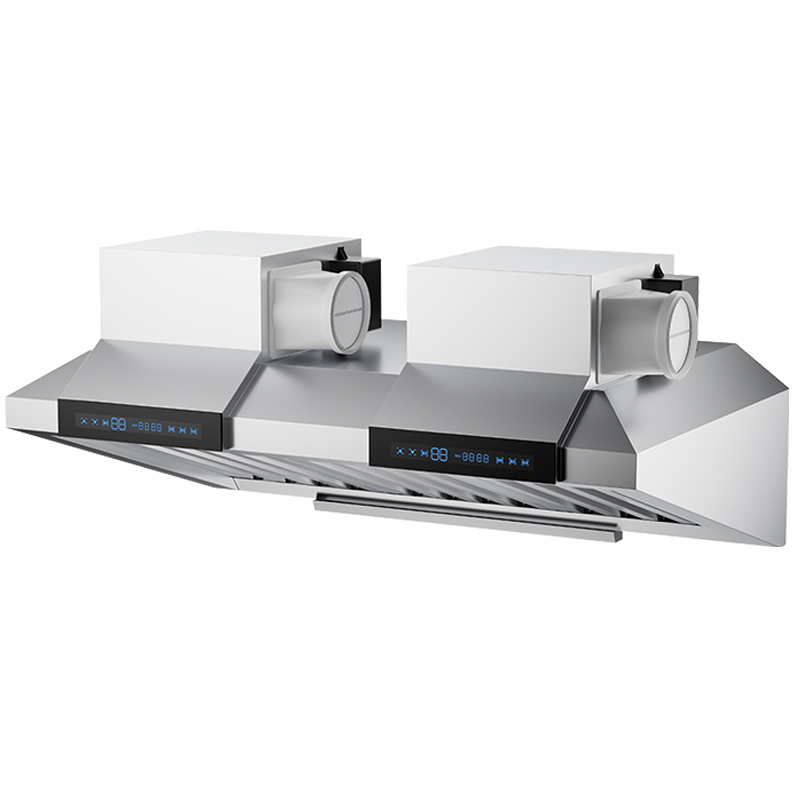

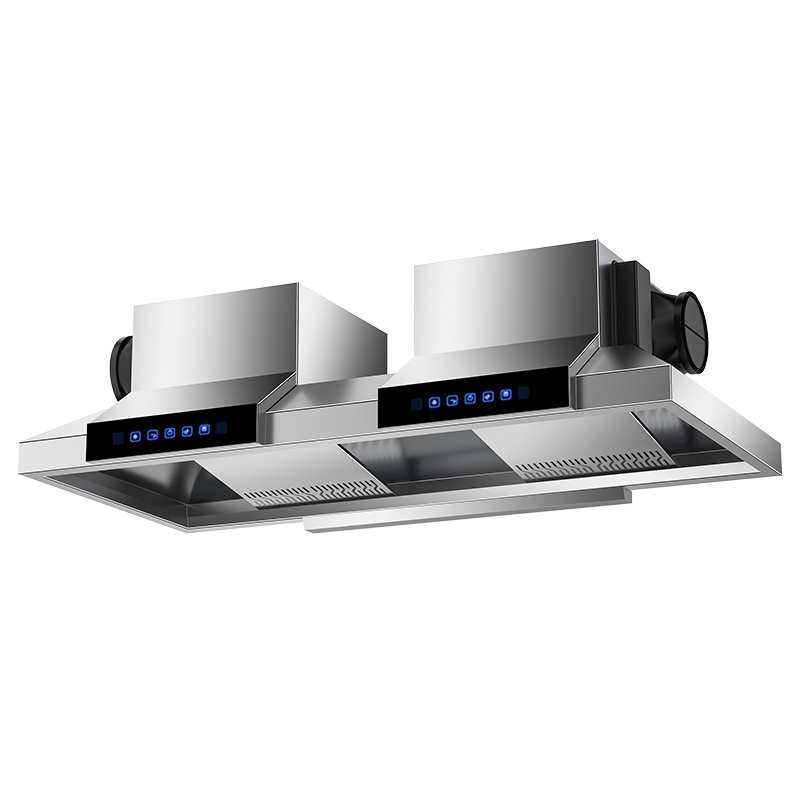

Variable frequency range hood
Variable frequency range hood
Variable frequency range hood
Variable frequency range hood
Variable frequency range hood
Variable frequency range hood
Variable frequency range hood
Variable frequency range hood

Variable frequency range hood

CHINENG will optimize product specifications from time to time according to the market response, the parameters on the page may not be updated in time, so the specific parameters are subject to the real product, while the commercial kitchen equipment a wide variety of products did not appear on the page, if you have equipment needs or customized services, please add the following customer service wechat detailed consultation, we thank you for coming!
TikTok: Chineng Cooking utensil YouTube: 驰能商用厨具 WhatsApp: 8613528627820 Wechat: 13528627820

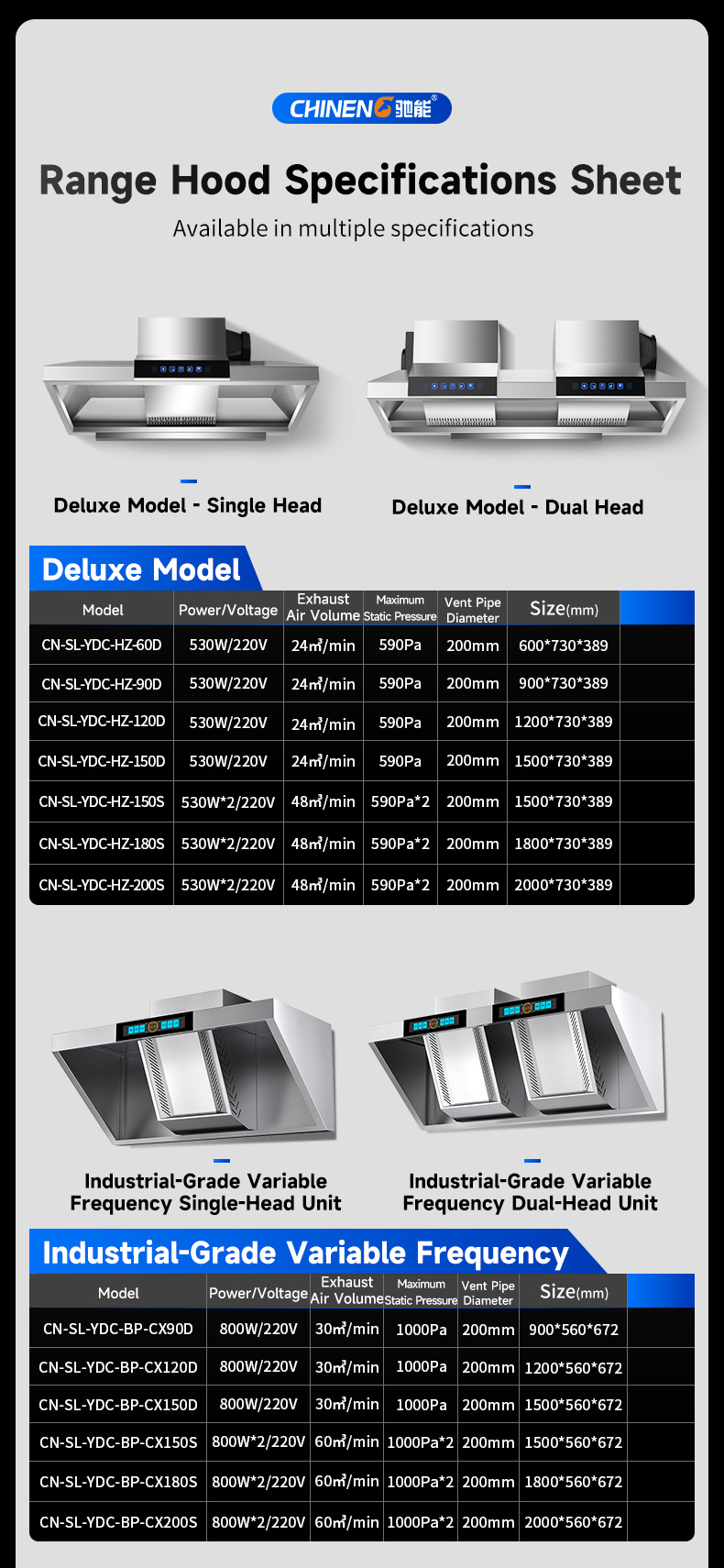

Details Product parameters After-sales service












deluxe
YDC-HZ-60D
Power/Voltage:530w/220v
Exhaust air volume:24m³/min
Maximum static pressure:590pa
Exhaust pipe diameter:200mm
Size:600*730*389mm


YDC-HZ-90D
Power/Voltage:530w/220v
Exhaust air volume:24m³/min
Maximum static pressure:590pa
Exhaust pipe diameter:200mm
Size:600*730*389mm


YDC-HZ-120D
Power/Voltage:530w/220v
Exhaust air volume:24m³/min
Maximum static pressure:590pa
Exhaust pipe diameter:200mm
Size:1200*730*389mm


YDC-HZ-150D
Power/Voltage:530w/220v
Exhaust air volume:24m³/min
Maximum static pressure:590pa
Exhaust pipe diameter:200mm
Size:1500*730*389mm


YDC-HZ-150S
Power/Voltage:530w*2/220v
Exhaust air volume:48m³/min
Maximum static pressure:590pa*2
Exhaust pipe diameter:200mm
Size:1500*730*389mm


YDC-HZ-180S
Power/Voltage:530w*2/220v
Exhaust air volume:48m³/min
Maximum static pressure:590pa*2
Exhaust pipe diameter:200mm
Size:1800*730*389mm


YDC-HZ-200S
Power/Voltage:530w*2/220v
Exhaust air volume:48m³/min
Maximum static pressure:590pa*2
Exhaust pipe diameter:200mm
Size:2000*730*389mm


Deluxe model - Frequency conversion
YDC-HZB-90D
Power/Voltage:220w/220v
Exhaust air volume:24m³/min
Maximum static pressure:1086pa
Exhaust pipe diameter:200mm
Size:900*730*389mm


YDC-HZB-120D
Power/Voltage:220w/220v
Exhaust air volume:24m³/min
Maximum static pressure:1086pa
Exhaust pipe diameter:200mm
Size:1200*730*389mm


YDC-HZB-150D
Power/Voltage:220w/220v
Exhaust air volume:24m³/min
Maximum static pressure:1086pa
Exhaust pipe diameter:200mm
Size:1500*730*389mm


YDC-HZB-150S
Power/Voltage:220w*2/220v
Exhaust air volume:48m³/min
Maximum static pressure:1086pa*2
Exhaust pipe diameter:200mm
Size:1500*730*389mm


YDC-HZ-180S
Power/Voltage:220w*2/220v
Exhaust air volume:48m³/min
Maximum static pressure:1086pa*2
Exhaust pipe diameter:200mm
Size:1800*730*389mm


YDC-HZ-200S
Power/Voltage:220w*2/220v
Exhaust air volume:48m³/min
Maximum static pressure:1086pa*2
Exhaust pipe diameter:200mm
Size:2000*730*389mm

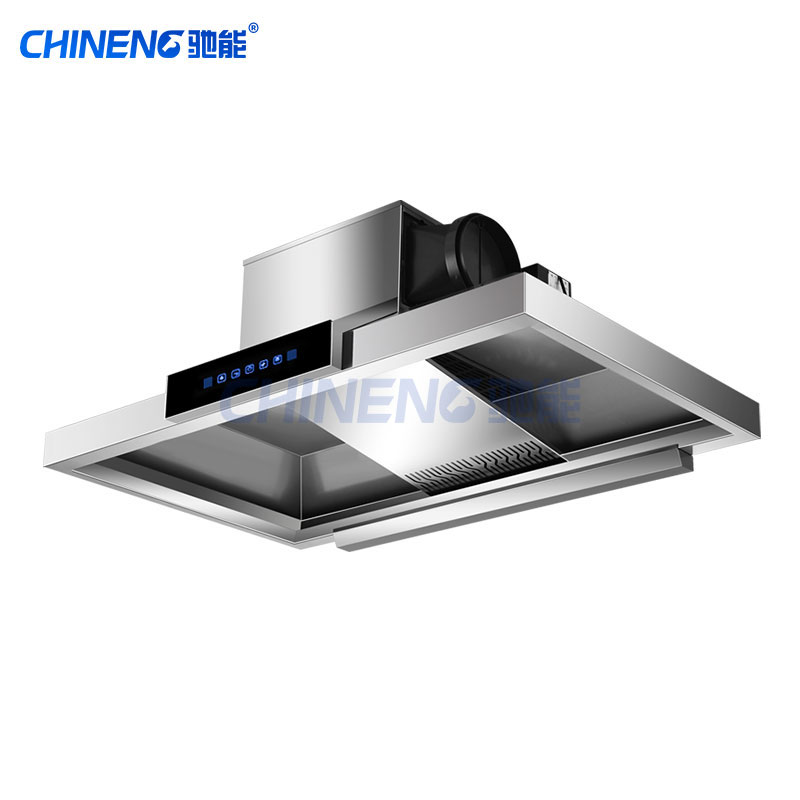

Deluxe - variable frequency top suction
YDC-DX90-D
Power/Voltage:600w/220v
Exhaust air volume:28m³/min
Maximum static pressure:1086pa
Exhaust pipe diameter:200mm
Size:900*730*660mm


YDC-DX120-D
Power/voltage：600w/220v
Exhaust air volume:28m³/min
Maximum static pressure:1086pa
Exhaust pipe diameter:200mm
Size:1200*730*660mm


YDC-DX150-D
Power/Voltage:600w/220v
Exhaust air volume:28m³/min
Maximum static pressure:1086pa
Exhaust pipe diameter:200mm
Size:1500*730*660mm


YDC-DX150-S
Power/Voltage:600w*2/220v
Exhaust air volume:56m³/min
Maximum static pressure:1086pa*2
Exhaust pipe diameter:200mm
Size:1500*730*660mm


YDC-DX180-S
Power/Voltage:600w*2/220v
Exhaust air volume:56m³/min
Maximum static pressure:1086pa*2
Exhaust pipe diameter:200mm
Size:1800*730*660mm


YDC-DX200-S
Power/Voltage:600w*2/220v
Exhaust air volume:56m³/min
Maximum static pressure:1086pa*2
Exhaust pipe diameter:200mm
Size:2000*730*660mm


Project money - Frequency conversion
YDC-BP-CX90D
Power/Voltage:800w/220v
Exhaust air volume:30m³/min
Maximum static pressure:1000pa
Exhaust pipe diameter:200mm
Size:900*560*672mm


YDC-BP-CX120D
Power/Voltage:800w/220v
Exhaust air volume:30m³/min
Maximum static pressure:1000pa
Exhaust pipe diameter:200mm
Size:1200*560*672mm


YDC-BP-CX150D
Power/Voltage:800w/220v
Exhaust air volume:30m³/min
Maximum static pressure:1000pa
Exhaust pipe diameter:200mm
Size:1500*560*672mm


YDC-BP-CX150S
Power/Voltage:800w*2/220v
Exhaust air volume:60m³/min
Maximum static pressure:1000pa*2
Exhaust pipe diameter:200mm
Size:1500*560*672mm


YDC-BP-CX180S
Power/Voltage:800w*2/220v
Exhaust air volume:60m³/min
Maximum static pressure:1000pa*2
Exhaust pipe diameter:200mm
Size:1800*560*672mm


YDC-BP-CX200S
Power/Voltage:800w*2/220v
Exhaust air volume:60m³/min
Maximum static pressure:1000pa*2
Exhaust pipe diameter:200mm
Size:2000*560*672mm


supreme
HBX-E120
Power/Voltage:1876w/220v
Exhaust air volume:70m³/min
Number of fans:2
Fan power:800w*2
Size:900*560*672mm


HBX-E150
Power/Voltage:2804w/220v
Exhaust air volume:105m³/min
Number of fans:3
Fan power:800w*3
Size:1500*850*1160mm


HBX-E200
Power/Voltage:3717w/220v
Exhaust air volume:104m³/min
Number of fans:4
Fan power:800w*4
Size:2000*850*1160mm

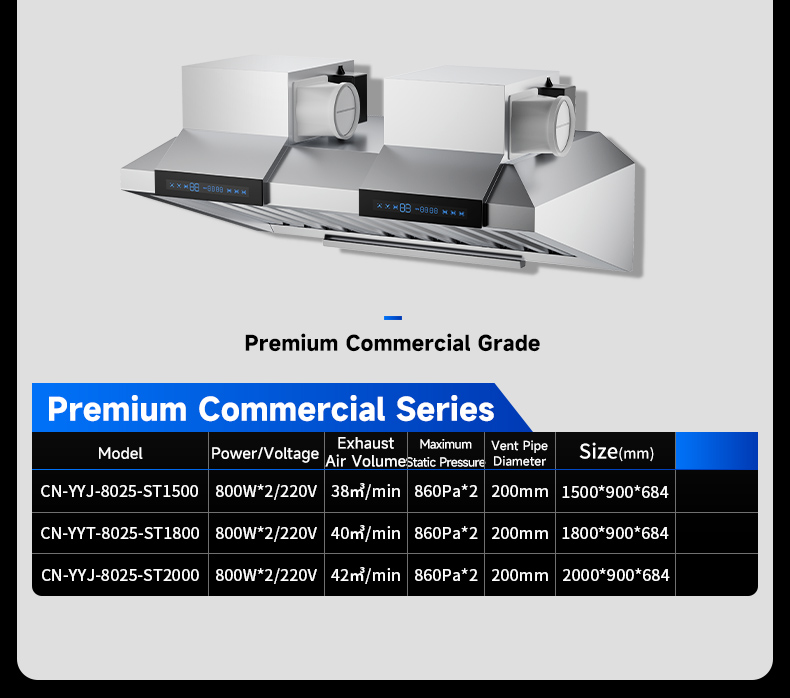

Luxury commercial model
CN-YYJ-8025-ST1500
Power/Voltage:800w*2/220v
Exhaust air volume:38m³/min

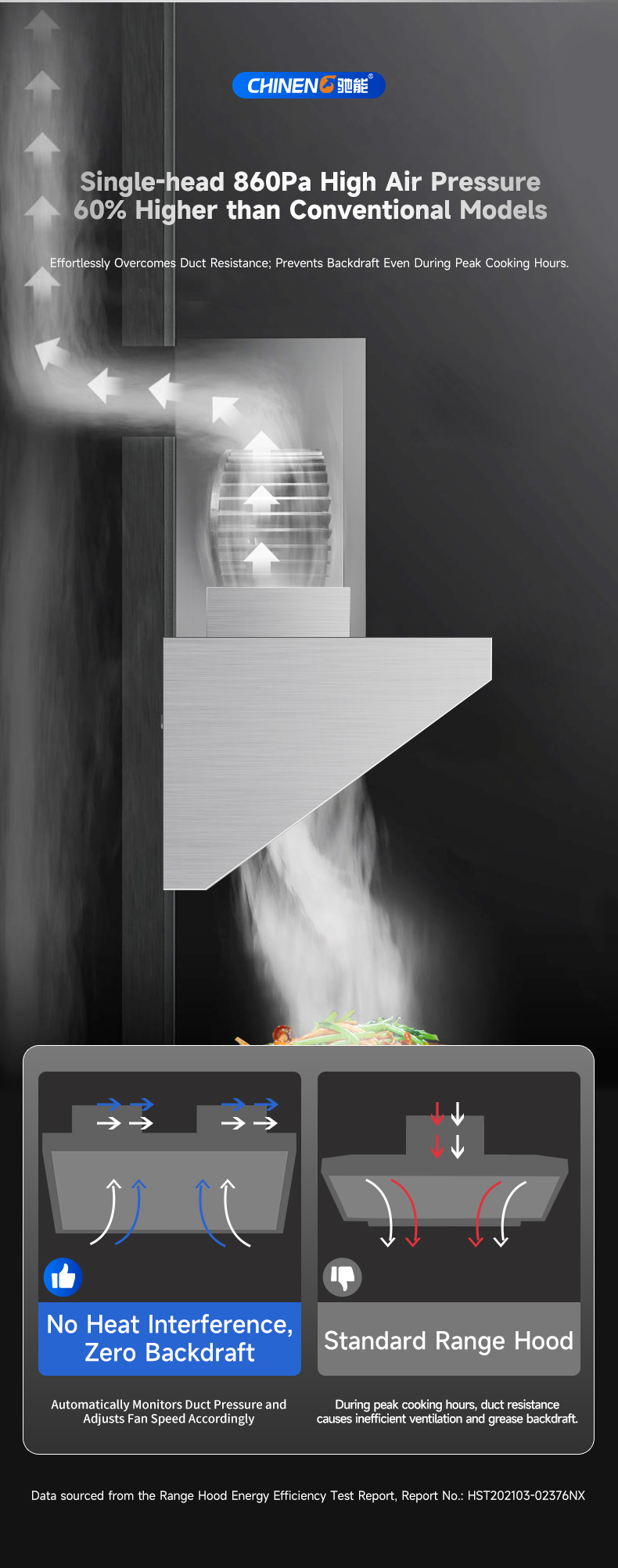

Maximum static pressure:860pa*2
Exhaust pipe diameter:200mm
Size:1500*900*684mm


CN-YYJ-8025-ST1800
Power/Voltage:800w*2/220v
Exhaust air volume:40m³/min
Maximum static pressure:860pa*2
Exhaust pipe diameter:200mm
Size:1800*900*684mm


CN-YYJ-8025-ST2000
Power/Voltage:800w*2/220v
Exhaust air volume:42m³/min
Maximum static pressure:860pa*2
Exhaust pipe diameter:200mm
Size:2000*900*684mm
