Wall mounted steam generator [Price, Quotation, Parameters, Customization] - Vietnam CHINENG commercial kitchen equipment Company

Wall mounted steam generator

CHINENG will optimize product specifications from time to time according to the market response, the parameters on the page may not be updated in time, so the specific parameters are subject to the real product, while the commercial kitchen equipment a wide variety of products did not appear on the page, if you have equipment needs or customized services, please add the following customer service wechat detailed consultation, we thank you for coming!

TikTok: Chineng Cooking utensil

YouTube: 驰能商用厨具

WhatsApp: 8613528627820

Wechat: 13528627820

Details Product parameters After-sales service

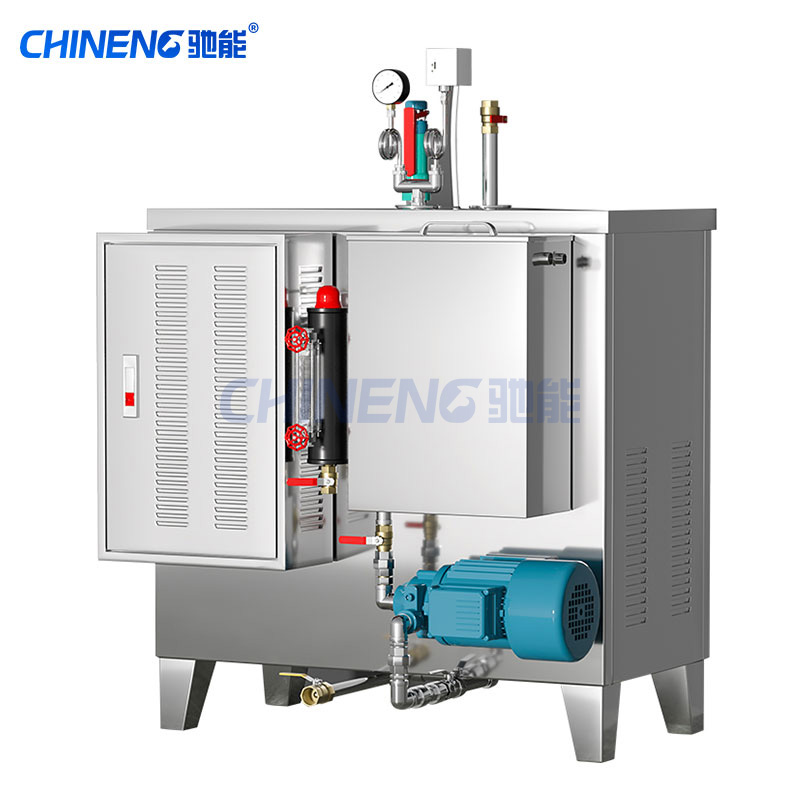

Wall mounted steam generator - Electric heating type
CN-B-DZQ-24
Product Name:	Wall-mounted - Electric -24kw
Voltage:	380v
Evaporation:	36kg
Working pressure:	0.2MPa
Saturation temperature:	125℃
Specifications:	520420900mm

CN-B-DZQ-36
Product Name:	Wall-mounted - Electric -36kw
Voltage:	380v
Evaporation:	54kg
Working pressure:	0.2MPa
Saturation temperature:	125℃
Specifications:	520420900mm

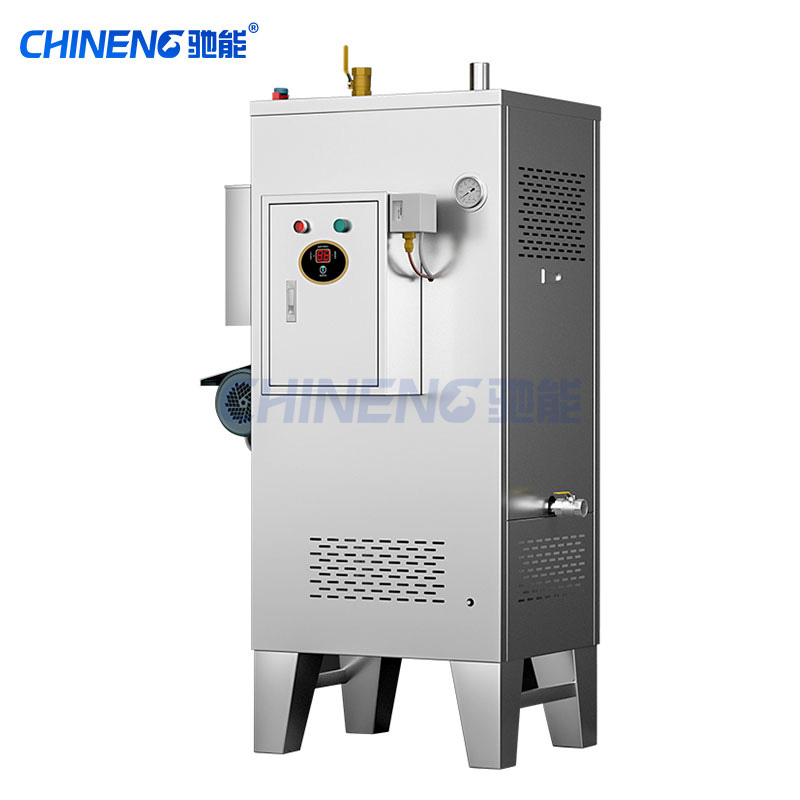

Wall mounted steam generator - Gas model
Product model:CN-DC-B-RZQ-50T (Natural Gas)CN-DC-B-RZQ-50y (Liquefied Gas)
Product Name:	Wall-mounted - Gas model -50
Gas consumption (LPG/Natural gas) :	2.9kg/3.3m³
Evaporation:	53kg
Power/Voltage:	120w/220v
Saturation temperature:	125℃
Specifications:	520420900mm

Product model:CN-DC-B-RZQ-60T (Natural Gas) CN-DC-B-RZQ-60y (Liquefied Gas)
Product Name:	Wall-mounted - Gas model -60
Gas consumption (LPG/Natural gas) :	3.6kg/4.1m³
Evaporation:	63kg
Power/Voltage:	120w/220v
Saturation temperature:	125℃
Specifications:	520420900mm

Product model:CN-DC-B-RZQ-70T (Natural Gas)CN-DC-B-RZQ-70T (Natural Gas)
Product Name:	Wall-mounted - Gas model -70
Gas consumption (LPG/Natural gas) :	4.4kg/4.9m³
Evaporation:	73kg
Power/Voltage:	120w/220v
Saturation temperature:	125℃
Specifications:	640420900mm

Product model:CN-DC-B-RZQ-100T (Natural Gas)CN-DC-B-RZQ-100Y (Liquefied Gas)
Product Name:	Wall-mounted - Gas model -100
Gas consumption (LPG/Natural gas) :	6.0kg/6.9m³
Evaporation:	100kg
Power/Voltage:	120w/220v
Saturation temperature:	125℃
Specifications:	7504501100mm

Product model:CN-DC-B-RZQ-200T (Natural Gas)CN-DC-B-RZQ-200Y (Liquefied Gas)
Product Name:	Wall-mounted - Gas model -200
Gas consumption (LPG/Natural gas) :	12kg/13.8m³
Evaporation:	200kg
Power/Voltage:	120w/220v
Saturation temperature:	125℃
Specifications:	9007501100mm

Sales process Customized process

Sales process

Consultation

Make an appointment for free on-site survey by consulting or filling in the form

Requirements submission

Submit or inform the customer service of your usage environment, scale, usage and other information

Recommended kitchen equipment

According to customer needs, customer service recommends relevant products and models and gives a detailed introduction

The customer places an order

The functional parameters of the equipment shall meet the customer's requirements for placing an order

Factory delivery

According to the customer's order model, the factory carries out production packaging and delivery

Equipment installation

We have a professional installation master to install and test

After-sales service

If there is any problem with the kitchen equipment, there will be professional door-to-door service

Customized process

Consultation

Make an appointment for free on-site survey by consulting or filling in the form

Requirements submission

Submit or inform the customer service of your usage environment, scale, usage and other information

Recommended kitchen equipment

According to customer needs, customer service recommends relevant products and models and gives a detailed introduction

Engineer design

Equipment engineer gives design feedback according to the requirements submitted by the customer

Identify a custom design

The equipment engineer determines the customized design according to the customer's needs for the customer to determine.

Factory production

After the customized design is determined, it is handed over to the factory for production, and there is a certain production cycle according to the difficulty of customization

Factory delivery

After the customized equipment is tested and no problem is found, it will be packed and shipped

Equipment installation

We have a professional installation master to install and test

After-sales service

If there is any problem with the kitchen equipment, there will be professional door-to-door service
